Product Introduction

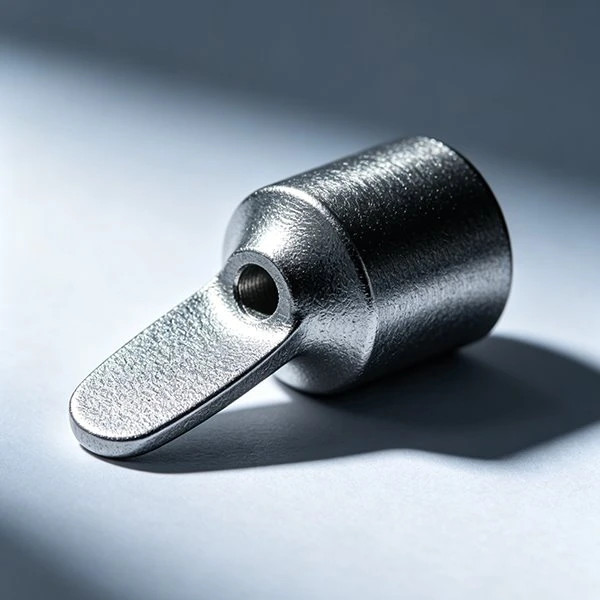

In the highly demanding aerospace manufacturing sector, flight propulsion assemblies and main lift rotors operate under continuous, intense stress gradients. Maintaining absolute dynamic equilibrium within these systems is critical for operational safety, fuel efficiency, and component longevity. The Tungsten Alloy Aircraft Rotor Balance Counterweight is explicitly engineered to address these severe aerodynamic and mechanical challenges.
By providing exceptionally uniform concentrated mass, this specialized inertial component fits seamlessly inside tight leading-edge blade pockets to neutralize destructive flutter. Leveraging state-of-the-art powder metallurgy, the manufacturing process permanently eliminates internal micro-flaws common in traditional casting. For global aviation original equipment manufacturers (OEMs), this meticulous approach guarantees that every single counterweight delivers identical, predictable balancing performance, ensuring uncompromising reliability across large-scale assembly operations.
Technical Parameters & Manufacturing Capability
|
Material Composition |
Density (g/cm³) |
Yield Strength |
Charpy Impact Energy |
Quality Certifications |
|
W-Ni-Fe (AMS-T-21014) |
17.5 – 18.2 |
≥ 580 MPa |
≥ 16 J/cm² |
Full Aerospace Batch Traceability |
Product Advantages & Features
Optimal Aerospace Density
Achieves a highly concentrated sintered density range of 17.5 – 18.2 g/ cm³ , maximizing rotational stability without altering or expanding the critical aerodynamic profile of the rotor blades.
Exceptional Yield Strength
Delivers a yield strength of ≥ 580 MPa, ensuring the component withstands extreme, continuous centrifugal forces without suffering permanent structural deformation.
Enhanced Impact Toughness
Features a Charpy Impact Energy rating of ≥ 16 J/cm² . The fine grain matrices strongly resist crack propagation even during extreme high-load maneuvers or frigid cold-climate flights.
Flawless Batch Uniformity
Fully automated blending systems guarantee that across high-volume production runs (e.g., 10,000-unit batches), every individual part exhibits identical density and mass metrics.
Substantial Manufacturing Efficiency
Precision near-net-shape sintering faithfully matches rigorous aerodynamic contours directly from the mold, eliminating up to 80% of secondary CNC machining costs.
Premium Material Compliance
Formulated from top-tier W-Ni-Fe heavy alloys, rigorously meeting the established AMS-T-21014 specifications for complete compliance in structural aviation engineering.
Application Scenarios
Commercial Helicopter Lift Rotors
Critical for maintaining dynamic balance in main and tail rotors, significantly reducing cabin vibration and extending drivetrain fatigue life.
Fixed-Wing Turboprop Assemblies
Integrated tightly into variable-pitch propeller systems to ensure smooth, flutter-free high-speed rotation during commercial or cargo transport.
Advanced Unmanned Aerial Vehicles (UAVs)
Providing precise inertial balancing for heavy-duty military and industrial drone propulsion systems operating in turbulent environments.
Frequently Asked Questions (FAQ)
Q: How does the powder metallurgy process improve upon traditional full-machining for these specific rotor components?
A: Our liquid-phase vacuum sintering creates a near-net-shape component that perfectly matches complex leading-edge pockets directly from the mold. This process not only eliminates internal micro- voids but also drastically cuts down up to 80% of the costly, time-consuming secondary CNC milling required by traditional subtractive manufacturing.
Q: Why is the specific yield strength of ≥ 580 MPa critical for the Tungsten Alloy Aircraft Rotor Balance Counterweight?
A: Aircraft rotors generate immense centrifugal pull during flight. This precise yield strength ensures that the high-density tungsten material will not warp, creep, or permanently deform under these continuous stress gradients, thereby maintaining permanent and reliable dynamic equilibrium throughout the blade's operational lifecycle.
