Product Introduction

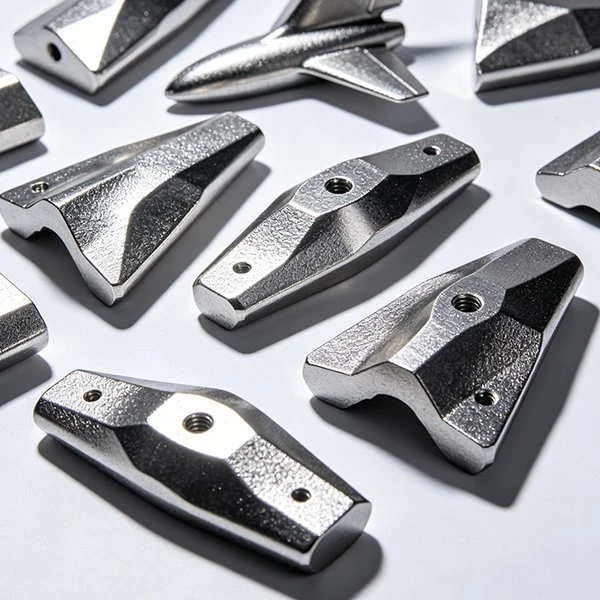

Modern aircraft design constantly pushes the boundaries of aerodynamic efficiency and flight stability. In this demanding engineering landscape, horizontal and vertical tailplanes necessitate substantial ballast weight to effectively balance engine thrust vector offsets and manage aerodynamic drag. The Tungsten Alloy Aircraft Tailplane Counterweight represents a critical component in achieving this delicate equilibrium. By employing advanced high-tonnage hydraulic pressing technology, these heavy, dense components are fabricated to slide effortlessly into extremely thin tailplane skins. This unique capability to concentrate massive weight within exceptionally low volumes allows aeronautical designers to significantly reduce overall airframe drag while optimizing balance control. Ultimately, the strategic deployment of the Tungsten Alloy Aircraft Tailplane Counterweight directly contributes to a safer, more stable, and fuel-efficient flight experience.
Technical Parameters & Manufacturing Capability
|
Alloy Grade |
Density Options |
Tensile Strength |
Elongation Range |
Anti-Corrosion Finish |
|
Class 1 Heavy W-Alloy |
17.0 – 18.0 g/cm³ |
≥ 750 MPa |
≥ 12% – 18% |
Cadmium-Free Zinc / Nickel Plating |
Product Advantages & Features
Optimized Density Profile
With a premium density range of 17.0 to 18.0 g/cm³ , it delivers maximum ballast mass within the tightest spatial constraints of the empennage.
Aerodynamic Efficiency Enhancement
The exceptionally small physical profile enabled by the material allows for slimmer tail control designs, substantially reducing parasitic cruise drag.
Superior Mechanical Strength
Featuring a robust tensile strength of ≥ 750 MPa, the Class 1 Heavy W-Alloy ensures the structural integrity of the ballast under extreme aerodynamic loads.
High Elongation Reliability
Offering an elongation range of 12% to 18%, the material provides crucial ductility, preventing catastrophic brittle failure during intense vibrational stress and turbulence.
Advanced Environmental Shielding
Treated with a cadmium-free zinc or nickel plating, these components are salt-spray tested for up to 500 hours to prevent galvanic corrosion when bolted directly to aluminum airframe ribs.
High-Volume Production Feasibility
Leveraging vast powder metallurgy line capacities allows for massive scale production, offering unmatched procurement leverage for global commercial aviation contracts.
Application Scenarios
Commercial Airliners
Horizontal stabilizer balancing to optimize fuel efficiency during long-haul cruising.
Military Fighter Jets
Vertical tailplane ballasting to offset extreme thrust vectors and enhance high-speed maneuverability.
Unmanned Aerial Vehicles (UAVs)
Compact weight distribution management in spatially restricted drone airframes.
Business Aviation
Precision empennage tuning for smoother aerodynamic performance and enhanced passenger comfort.
Frequently Asked Questions (FAQ)
Q: How does the Tungsten Alloy Aircraft Tailplane Counterweight prevent galvanic corrosion?
A: The components are finished with an advanced cadmium-free zinc or nickel plating. This specialized coating is designed to act as an environmental shield, preventing galvanic reactions when the heavy alloy is in direct contact with standard aluminum airframe components.
Q: Can the shape of the counterweight be customized for ultra-thin tail sections?
A: Yes. The multi-axial hydraulic pressing process is highly adaptable, allowing for the creation of exceptionally slim profiles. This ensures the weights slide easily into the narrowest tailplane skins without compromising the total required mass.
