Product Introduction

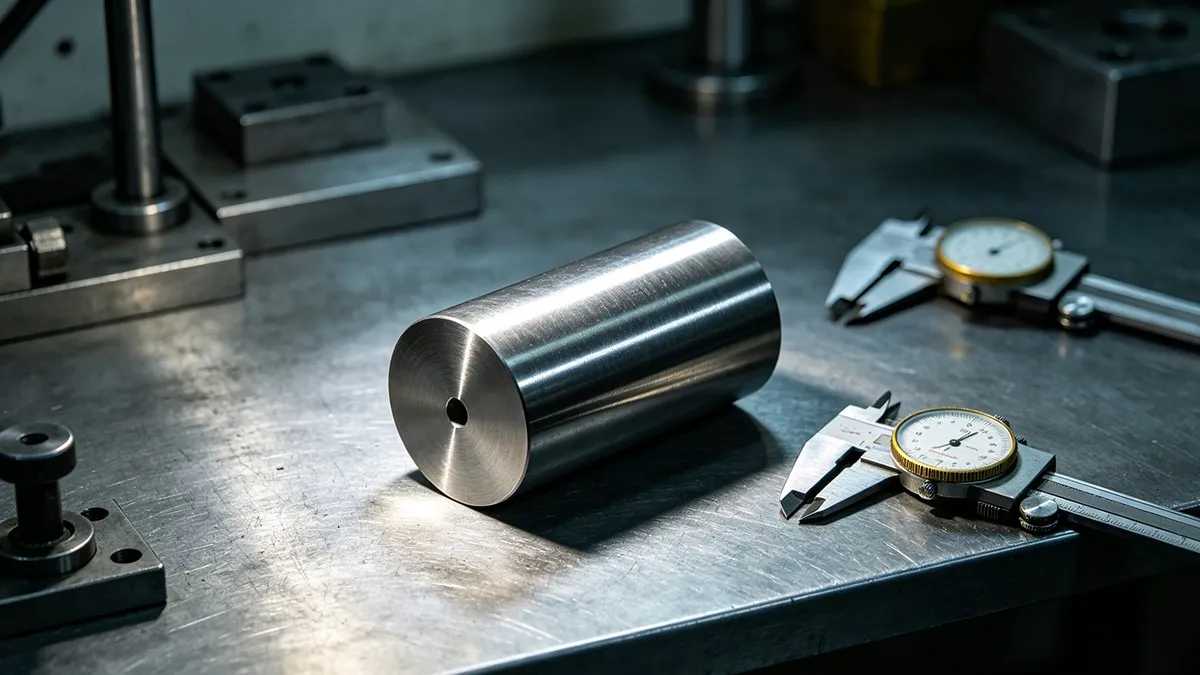

In modern tactical defense systems and inertial guidance units, navigational accuracy depends entirely on absolute mechanical precision. The Tungsten Heavy Counterweight is a highly specialized component engineered to provide exceptional rotational inertia within microscopic mechanical tolerances. Formulated from premium heavy tungsten alloys, including W-Ni-Cu and W-Ni-Fe matrices, these counterweights are integrated into high-RPM gyroscopic rotors and gimbal systems. They ensure unwavering orientation stability and precise tracking performance even under violent launch accelerations and harsh vibratory environments.
Technical Specifications
|
Composition |
Machining Tolerance |
Concentricity |
Dynamic Balance Grade |
Magnetic Permeability |
|
W-Ni-Cu / W-Ni-Fe |
± 0.005 mm |
≤ 0.002 mm |
ISO G0.4 or higher |
Non-magnetic options (< 1.01) |
Product Advantages & Features
Our manufacturing protocols for the Tungsten Heavy Counterweight deliver the following critical advantages for advanced defense engineering:
Maximum Rotational Inertia
The high-density alloy configuration maximizes angular momentum without increasing the physical footprint of the guidance package.
Non-Magnetic Formulations
Available in specialized W-Ni-Cu grades with an exceptionally low magnetic permeability (< 1.01), eliminating magnetic interference with sensitive onboard electronic arrays and sensors.
Sub-Micron Machining Tolerances
Micro-machined to an exacting tolerance of ± 0.005 mm, preventing rotational drift and ensuring stability during high-RPM operations.
Extreme Concentricity Control
Features an exceptional concentricity of ≤ 0.002 mm, which minimizes structural imbalance and maintains axis integrity under high stress.
Elite Dynamic Balance Grade
Certified to ISO G0.4 or higher, ensuring the rotor mechanism achieves flawless rotational symmetry and significantly reduced bearing wear.
Dual-Composition Flexibility
Offered in both W-Ni-Fe for high structural strength and W-Ni-Cu for strictly non-magnetic guidance applications, accommodating varied tactical needs.
Application Scenarios
Tactical Missile Navigation Units: Ensuring real-time trajectory correction and stable orientation during high-velocity flight paths.
Inertial Guidance Systems (IMUs): Providing critical reference tracking for autonomous aerospace and defense vehicles.
High-RPM Gyroscopic Rotors: Optimizing angular momentum in stabilization platforms for optical and radar targeting sensors.
Gimbal System Stabilization: Suppressing jitter and maintaining structural poise under intense multi-axis launch accelerations.
