Product Introduction

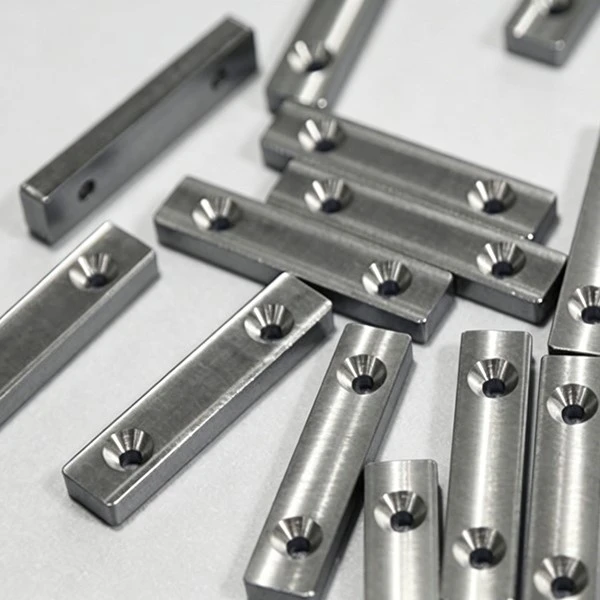

In high-precision aerospace navigation and attitude control systems, gyroscopic instruments operate under severe multi-G environments where mechanical integrity and signal purity are paramount. The Tungsten Alloy Aerospace Gyro Control Counterweight is engineered specifically to meet these demanding operational standards. For global aerospace original equipment manufacturers (OEMs), achieving an optimal balance between maximum inertial mass and electromagnetic isolation is a persistent challenge.
Traditional dense materials often introduce minor magnetic signatures that can compromise the accuracy of sensitive onboard electronics. By implementing an advanced, strictly non-magnetic material formulation, this specialized component provides the extreme density required for ultra-high-RPM inertial guidance units without inducing magnetic drift or localized signal interference.
Technical Parameters & Manufacturing Capability
|
Alloy Specification |
Density (g/cm³) |
Concentricity Limit |
Magnetic Permeability |
Surface Finish |
|
W-Ni-Cu Non-Magnetic |
17.0 – 17.5 |
≤ 0.003 mm |
< 1.01 |
Ra 0.4 μm Diamond Ground |
Product Advantages & Features
Zero Magnetic Disturbance
Features a specialized W-Ni-Cu matrix yielding a magnetic permeability of < 1.01, completely eliminating compass interference and protecting avionic arrays.
Sub-Micron Concentricity
Fabricated via state-of-the-art grinding centers to achieve a strict concentricity limit of ≤ 0.003 mm, crucial for ensuring true angular momentum.
High Sintered Density
Delivers a concentrated density profile of 17.0 – 17.5 g/cm³ , allowing maximum rotational inertia to be packed into miniature, space-constrained housings.
Flawless Diamond-Ground Finish
Achieves a smooth surface finish of Ra 0.4 µm, drastically reducing aerodynamic drag and micro-frictional wear inside vacuum-sealed enclosures.
Isotropic Microstructure
High-precision powder metallurgy molds significantly reduce post- sintering finish grinding requirements, driving large-scale production costs down.
Direct Factory Economic Leverage
Highly optimized near-net-shape manufacturing eliminates raw material waste and heavy machining overhead, delivering clear wholesale cost advantages for global enterprise supply chains.
Application Scenarios
Satellite Attitude Control
Integrated into reaction wheels and control moment gyroscopes requiring high mass density combined with complete electromagnetic isolation.
Inertial Navigation Systems (INS)
Utilized in high-end commercial aviation and defense guidance units where magnetic neutrality ensures true-heading calculation accuracy.
Guided Missile Trajectory Controllers
Applied in miniature high-G stabilization platforms where extreme rotational velocities demand flawless concentricity.
Frequently Asked Questions (FAQ)
Q: Why is the W-Ni-Cu formulation critical for the Tungsten Alloy Aerospace Gyro Control Counterweight compared to standard tungsten grades?
A: Standard W-Ni-Fe tungsten alloys possess a weak ferromagnetic response that causes signal drift in sensitive navigational electronics. The W-Ni-Cu matrix ensures a magnetic permeability under 1.01, delivering the absolute magnetic neutrality required for precise avionics.
Q: How does the Ra 0.4 µm surface finish affect high-RPM gyroscopic performance?
A: The Ra 0.4 µm diamond-ground surface minimizes micro-frictional resistance. This is vital in high- RPM vacuum systems to prevent localized thermal expansion, ensuring that the component retains its sub-micron concentricity limit over extended operational lifecycles.
