Technical Specifications
1. Particle Size Distribution by Grade
|
Part No. |
D10 (μm) |
D50 (μm) |
D90 (μm) |
Application Notes |
|
QIP-3 |
< 2.5 |
< 4 |
< 8 |
Highest precision magnetic components |
|
QIP-6 |
< 3.5 |
< 6 |
< 14 |
General high-efficiency magnetic parts |
|
QIP-8 |
< 5 |
< 8.5 |
< 20 |
Balanced cost/performance |
|
QIP-10 |
< 7 |
< 12 |
< 30 |
Thick-section compacted parts |
2. Physical & Magnetic Properties
|
Property |
Value |
Notes |
|
Pressing Density |
> 7.2 g/cm³ |
Ensures mechanical strength |
|
Satellite Powder |
None |
Enables clean molding |
|
Core Loss |
Low |
Optimized for soft-magnetic devices |
|
Saturation Magnetization |
High |
Supports strong magnetic output |
|
Flowability |
Excellent |
Suitable for high-volume production |
3. Application Overview
|
Application |
Requirement |
Soft Magnetic Powder Advantage |
|
Transformers |
Low core loss |
High magnetic uniformity |
|
Motors |
High mechanical strength |
Dense molded parts |
|
Magnetic actuators |
Precise magnetic characteristics |
Stable particle distribution |
|
Energy systems |
High reliability |
Consistent sintering performance |
Key Features
Insulated Particle Surface
Each particle carries a high-resistivity coating to suppress eddy currents.
High Electrical Resistivity
Dramatically lowers AC losses in high-frequency environments.
Excellent Moldability
Supports high compaction forces while maintaining coating integrity.
Stable Magnetic Characteristics
Ideal for power inductors, molded cores, and 3D-magnetic-path structures.
Adjustable Particle Size
Multiple size options for balancing inductance, permeability, and mechanical strength.
High Mechanical Durability
Produces dense and robust cores ideal for vibration-heavy automotive environments.
Material Technology
Each iron particle is coated with a thin, uniform dielectric layer engineered to withstand high compaction pressures while maintaining electrical separation between grains. During pressing, the coating maintains integrity, ensuring excellent high-frequency magnetic behavior after heat treatment.
Particle sizes can be customized (typically 10–60 μm), providing designers flexibility for low-frequency energy storage cores or high-frequency power conversion systems such as onboard chargers, DC-DC converters, and high-efficiency electromobility components.
Benefits
- Reduced Eddy Current Loss: Enables high efficiency even in fast-switching power applications (SiC/GaN-based systems).
- Compact 3D Flux Paths: Allows magnetic circuits impossible with laminated steel or ferrite blocks.
- Lower Component Weight: High-density compaction enables smaller, lighter inductors and chokes.
- Thermal Stability: Suitable for electronics operating in 150–200°C environments.
- Low Audible Noise: Reduced magnetostriction compared to ferrites, ideal for EV applications.
Applications
- Molded inductors for compact electronics
- EV power supply systems (OBC, DC-DC)
- High-efficiency power chokes
- Magnetic components for SiC/GaN fast-switching circuits
- High-frequency transformers and energy storage inductors
- 3D magnetic path devices used in automotive, telecom, and industrial power
This insulated soft-magnetic powder is a key material enabling next-generation power electronics, high-frequency energy conversion, and compact, high-density magnetic designs.
Summary

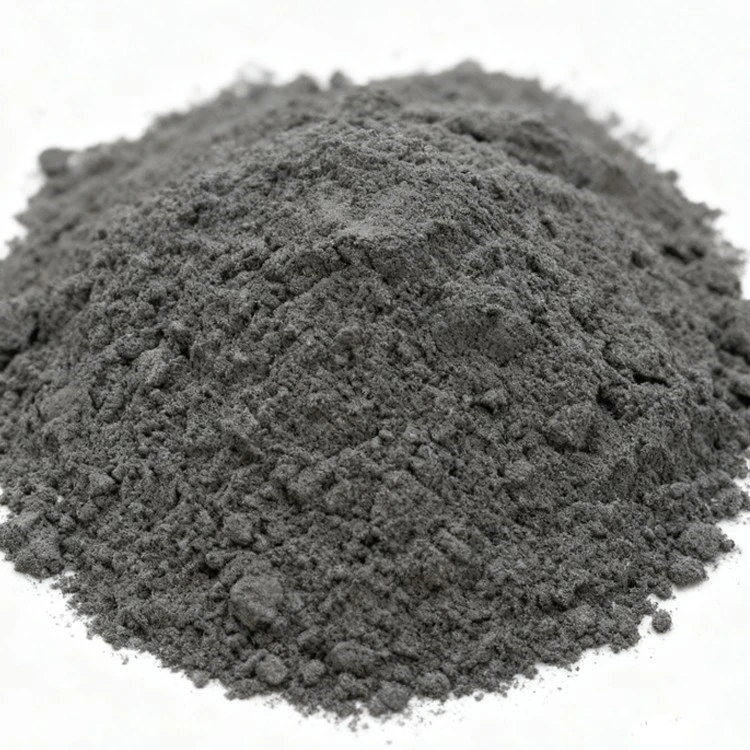

NEWLIFE Insulated Soft Magnetic Powder is a specialized iron-based magnetic material engineered for applications requiring low eddy-current loss, high electrical resistivity, and stable magnetic behavior at medium-to-high frequencies. Compared with traditional soft-magnetic iron powders, this material includes a uniform insulating coating on each particle, significantly reducing inter-particle eddy currents and improving overall energy efficiency.
This insulation design makes the powder ideal for 3D-flux magnetic circuit structures, molded inductors, powder cores, and automotive power electronics where conventional laminated materials or ferrites fall short.
